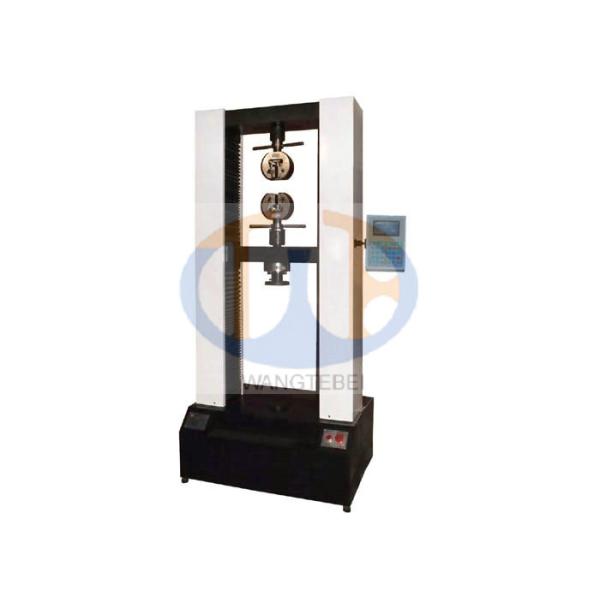

Crack Electronic Tensile Testing Machine Tensile Experiment PID Parameter Adjusting
Ask Latest Price
Brand Name:wangtebei
Model Number:WTD
Price:negotiation
Payment Terms:T/T, L/C
Supply Ability:100 sets per month
Delivery Time:15 working days
Company Data
Active Member
Contact Person
sales
Business Type:
86-531-87962497
Business Type:
Manufacturer Exporter
Officials:
Room 209, No.6 Weihua West Road,Shizhong District,Jinan,250000,Shandong,China
Quality:
Quality Certifitation Available
Product Details
Company Profile
Product Details
1. introduction
Tensile compression testing machine price is used to test tension, compression, shearing force, adhesion, peeling force, tear strength, etc. of specimens, semi-products and finished products in the fields of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile, etc. , which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.
2. specification
| Model | WTD-5/10/20/50 | WTD-100 | WTD-200/300 | WTD-500/600 |
| Max. capacity(kN) | 5/10/20/50 | 100 | 200/300 | 500/600 |
| Measuring range | 1%~100%FS(0.4%-100%FS) | |||
| Grade | Grade 1(Grade 0.5) | |||
| Force resolution | 1/400000 | |||
| Deformation measuring range | 2%~100%FS | |||
| Relative error of deformation value | +/-1%(+/-0.5%) | |||
| Deformation resolution | 1/400000 | |||
| Force speed | 0.01-50 kN/s | |||
| Deformation speed | 0.01-30mm/min | |||
| Displacement speed | 0.01-500mm/min (can be 1000mm/min) | 0.01-300mm/min | 0.01-250mm/min | |
| Tensile fixture for round and flat specimen | Standard one set tensile fixture for round specimen, one set tensile fixture for round specimen, one set of compression platen, other test fixture can be equipped according to client’s requirement or relative test method | |||
| Extensometer | According to test materials or client’s requirement | |||
| High and low temperature test | According to relative test method or client’s requirement | |||
| Max. stroke of crossbeam | 1090mm | 1070mm | 1140mm | 1200mm |
| Effective tensile space (equip with metal tensile fixture) | 800mm | 700mm | 600mm | 600mm |
| Distance between columns | 430mm | 550mm | 600mm | 625mm |
| Power | 220V,1.0kw | 220V,2kw | 220V,3kw | 380V,4kw |
| Dim. Of loading frame(cm) | 79x43x186 | 92x50x198 | 110x60x241 | 130x87x250 |
| Weight | 400kg | 700kg | 1150/1250kg | 2500kg |
3. features
This universal testing machine adopts two strong supports, precise load cell to measure the load. Its crosshead can move up or down at a constant speed.
This universal testing machine can program the crosshead speed or conduct cyclical testing, allow testing at a constant force, testing at constant deformation, testing at constant displacement, etc.
This testing machine can equip with extensometers to measure the extension or deformation.
According to test requirement for temperature, humidity, pressure, etc, special device, such as environmental chamber can be placed around the test specimen to do test in certain temperature, humidity or pressure.
Matched with various test fixture, like peal, puncture, tear, pneumatic grip, belt tension, etc. This UTM can be used to metal, non-metal, composite materials like rubber, steel wire, plastic, seat belt, textile character test.
Protecting functions of over load, over current, over voltage, crosshead limit moving space protection, auto stop at break.
.Implementation of standards
ISO 37, GB 8808, GB / T1040.1-2006, GB / T1040.2-2006, GB / T
1040.3-2006, GB / T 1040.4-2006, GB / T 1040.5-2008, GB / T
4850-2002, GB / T12914-2008, GB / T 17200, GB / T 16578.1-2008, GB
/ T 7122, GB / T 2790, GB / T 2791, GB / T 2792, ASTM E4, ASTM
D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB /
T 2358, QB / T 1130
Company Profile
Jinan Wang Te Bei Equipment Co., Ltd.
Jinan Wangtebei Instrument and Equipment Co., Ltd. is located in Jinan, Quancheng. It is a modern high-tech company specializing in R&D and manufacturing of metal, non-metal and composite mechanical testing equipment. Our company has established a good reputation among our users with our strong financial strength, high-quality professional talents, highly informatized industrial operation and high-quality and efficient services.
Our company currently produces a variety of testing machines,
including electronic universal testing machine, hydraulic universal
testing machine, pressure/compressive testing machine,
non-destructive testing equipment, rubber testing equipment, steel
strand testing machine, manhole cover testing machine, cupping test
machine, steel bending Test machine and various testing machine
parts and other products, widely used in aerospace, defense
military, machinery manufacturing, vehicle and ship, steel
metallurgy, wire and cable, plastic rubber, building materials,
colleges and universities, research institutes, commodity
inspection quality inspection.
